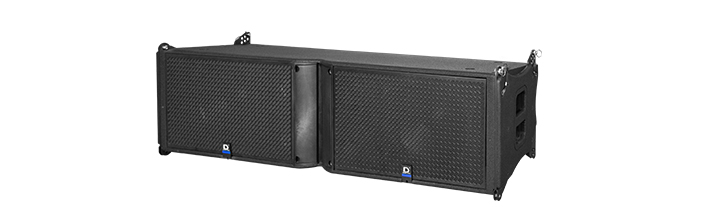

【FX-8L】
2X12” Three-way Line Array

FX-8L is a high performance linear array loudspeaker system with three frequency division design. It is equipped with two 12 "low frequency drivers, four 6.5" medium frequency drivers and two 3 "high frequency compression drivers

The new diffusion horn, with two adjustable horizontal diffusion angles of 100 degrees and 70 degrees, can meet different far-field and near-field applications; the design makes the mid tone playback effect cleaner and clearer without lack of thickness, and the directivity more uniform and consistent. The physical positions of the bass unit and the midrange unit are basically the same, which greatly reduces the overall system delay, makes the phase more perfect and the sense of hearing more natural.

It is mainly used in large-scale outdoor performance, stadium sound reinforcement, theater sound reinforcement, large-scale conference and exhibition venues sound reinforcement and other places.

Model: FX-8L
Drivers: LF: 2X12’’Neodymium ,MF:4X6.5’’Neodymium,HF :2x3” Neodymium
Power Handling: LF:2x600W, MF:600W, LF:180W(AES)
Frequency Response:40Hz-20kHz
Maximun SPL: 139dB continuous, 145dB peak
Sensitivity: LF:101dB, MF:102dB, HF:113dB
Nominal Impedance: 8?
Connectors: 2x Neutrik Speakon NL4

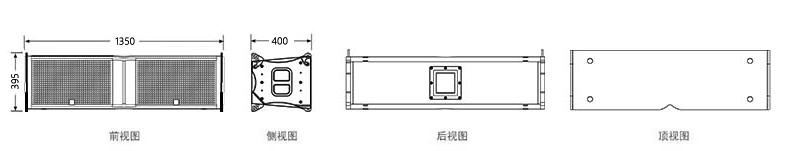

Dimensions(mm): 1350x395x400 (WxHxD)
Net Weight(Kg):65
