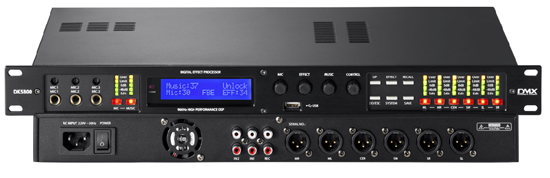

【DK5800】
Professional DSP Effecter
This product is a digital Karaoke effecter which possesses the function of loudspeaker specialized processor. It realizes a perfect integration of a six-way professional audio digital processor and a DSP digital effecter. Each of the functional module both can be debugged independently and has the corresponding PC debugging control interface, so it is simple and intuitive to operate, and it has high performance to price ratio.
Functional Characteristics:
1、Adopt 96K 24Bit sampling, which is more exquisite than 48 KHz sampling.
2、Adopt high performance 24Bit AD/DA converter, in order to improve sound effect.
3、There are seven-section parameter equalizer for MUSIC.
4、There are 15-section parameter equalizer for MIC, and it has limit and highpass frequency switching.
5、Microphone has 4-level feedback inhibition, and it upgrades to software frequency shift, so that it can effectively inhibit the feedback and realize less distortion.
6、Echo/ reverberation both have three independent EQ, and you can adjust the parameters of stereo/ echo.
7、Each output channel has 50ms independent delay, high/low switching, phase, mixing proportion and limit.
8、It has 2 simulation music inputs and 8 outputs (Left, Right, Center, Bass, Left/Right surround, recording output).
9、The main output has 5-section parameter equalizer, highpass frequency switching, filter mode switching and limit setting.
10、The central output has 5-section parameter equalizer, highpass and lowpass frequency switching, filter mode switching and limit setting.
11、The rear output has 5-section parameter equalizer, highpass frequency switching, filter mode switching and limit setting.
12、The bass output has 5-section parameter equalizer, highpass and lowpass frequency switching, filter mode switching, and limit setting. Also, it features that the bass output reduces when the microphone is on.
13、The signal of each channel has level display and mute control, and there is a built-in high performance mute controller.
