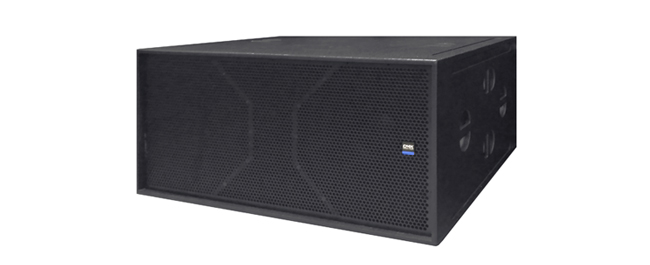

【CLA-318B】
Cardioid 3x18” subwoofer

The CLA-318B is a self-contained, high-ourput cardioid subwoofer system .It is designed to offer a very high output,tight and accurate sub-bass reponse,as low-requency extension of any DMX CLA Line Aarray system.

By means of a front and rear located woofer configuration , in combination with dedicated processing, the system offers selectable cardioid low-frequence control and excellent rear rejection(up to 39dB).Two 18’ long-excursion woofers with 4-in voicecoil ,neodymium was special  custom-made for FaitalPRO Italy

On the rear side, a single state-of-the –art 18’ long-excursion woofers with 4-in voicecoil ,neodymium was special  custom-made for FaitalPRO Italy. This folded part design enables optimal reflex-breathing,under minimal baffle dimension.

The CLA-318B enclosure is contructed from birch plywood and finished in a hard-wearing, textured black  coating.Intergrated rubber feet are located on underside of the enclosure for securing in multiple ground stach position .The CLA-318B in road version is fitted with 12 handles for easy logistics.

The CLA-218B deliver an incredible output for use in large space, including outdoor live sound, arenas,concerts,fixed installations etc.

Model: CLA-318B
Drivers: LF: 3x18’(460mm),Neodymium
Power Handling: 2400W/front side,1200w/rear side
Frequency Response:35Hz-120Hz
Maximun SPL: 135dB continuous,141dB peak
Sensitivity: 101.5dB
Dispersion HxV: Cardioid
Nominal Impedance: 4?/front side  8 ?/rear side
Connectors:1x Neutrik Speakon NL4
Dimensions(mm): 1206x606x976 (WxHxD)
Net Weight(Kg):104
